All product Data Sheets Installation and Operation Manuals and Product Literature are conveniently centrally located and organized by Resource Type and Solution to help you easily and quickly get to the information you need most. If the light is on steady then it thinks that the flow switch is open.

How To Troubleshoot A Hayward Aqua Rite Inyopools Com

From the Save As window.

. If the No Flow LED is ON check if the flow switch is installed backward. When your pump is off every five seconds check the incoming voltage. Within the options menu select Save link as Note.

Support Center Troubleshooting Guides. Continuity is open if there is no flow. Do not leave it like that.

If you dont have access to a VOM then perhaps the below might help. Installation requires 12 inches of straight pipe before flow switch. Check that pool pump is receiving enough water.

On Summit and R-410A 4T Hayward units the existing switch is screw on. HEATER CYCLES ON OFF. Contact Hayward Support.

You can use an old phone plug with the wires twisted together to simulate a closed flow switch. Note 2 YES Check for refrigerant leak. As the flow velocity increases so does the potential for generating damaging shock pressures as the valve opens and closes.

Measure the water temperature with a regular thermometer. Check for any clogs or backups causing poor water circulation filter pumpskimmer baskets Ensure that bypass valve is closed and that all other. Step 1 Turn the unit off and unplug it from the power source for 30 seconds.

Hayward websites have been developed in compliance with standards for Internet Explorer 10 or later. No Flow LED will be ON when there is a flow switch problem. If LED is ON check for flow switch installed backward.

YES Repair leak and recharge. Re-check for leaks recharge and test. If there is adequate flow and the LED is still on check that the arrows on the flow switch on top of hex are pointing in the direction of flow.

How to fix it. DIRTY FILTER OR PUMP BASKET. MURIATIC AND OTHER ACIDS CAN CAUSE SEVERE INJURY BURNS AND RESPIRATORY.

For variable speed pool pumps try putting the pump speed up a notch. FLOW CTRL VALVES FITTINGS. Troubleshooting chart for Hayward Universal H-Series millivolt pool heaters with standing pilot models H150 H200 H250 H300 H350 H400.

The flow switch light will blink for about 30 seconds from the time it detects a closed flow switch and then the light should go out. NO There has been a loss of charge. Hayward Cell Cleaning Stand as shown on the right GLX-CELLSTAND Turn Pump Off Remove Cell Step 1 Calcified Cell Clean Cell Step 2 NOTE.

If this does not work turn the unit off again before trying any other troubleshooting techniques. If flashing wait about 60 seconds after starting the pool pump. You can test the continuity of the flow switch using a Voltmeter or Ohmmeter.

The flow switch light will blink for about 30 seconds from the time it detects a closed flow switch and then the light should go out. There should be no elbow after the flow switch. CLEAN FILTER OR BASKETS.

Push the diagnostics button until t - 15 t - 9 t -5 t - 3 appears. You can use the two wire tel cord if available. Check the wire for any damage.

At flow velocities above 5 feet per second this shock pressure can be great enough to damage the valve. The arrows at the top of the hex nut need to point in the same direction as the water flow. Start with the main toggle switch in the Auto position.

Back to Top No LEDs or LCD display screen. EXTERNAL BYPASS OUT OF ADJUSTMENT. Step 2 Ensure the flow switch valve is open.

Ensure that your pool pump is sending water to the heat pump. Welcome to the Hayward Flow Control Support Center. The flow switch requires a minimum flow rate of 11 GPM to consistently stay closed.

To view these documents you will need to download the free Acrobat Reader which gives you instant access to PDF files. Check for possible turbulence inside of flow T. MIX SOLUTION AND CLEAN CELL ONLY IN A WELL VENTILATED AREA.

Tips Tricks to Diagnose and Fix a Hayward AquaRite salt system No Flow solid Red indicator failure light. 3200 t -15 t -3 t -9 1Step 2 Step 3 Step 4 How to. The catalog says that the flow velocity through the solenoid valve should not be greater than 5 feet per second.

Ad Search For Info About Hayward flow switch troubleshooting. Repeat until display shows correct cell. In-ground Hayward pump contains 230V and you give only 115V it can be fused or damage.

If LED is flashing wait 60 seconds after starting filter pump. It is the fifth and last cause of pool pump troubleshooting. USB drive must already be connected to your computer.

To change cell type cycle slide switch up to Super Chlorinate. Check that the flow switch is plugged into the connector on the bottom of the control unit and that the wire is not cut or damaged. This resets the spas control panel and will make the switch work again.

Make sure you have at least 12 of straight pipe before the flow switch. Use a swivel tee on the low side access port. If it is not similar to the inlet thermometer your inlet water temperature sensor is likely damaged.

Expand each Product Category for Product Series. Browse Get Results Instantly. HCP 300 Series.

Replace existing with new. ALWAYS WEAR PROPER EYE PROTECTION AND PROTECTIVE GLOVES. Close US English.

Clear away mulch and leaves from around the motor air vents. IE9 and older versions are not supported. Generally Hayward Pool Heaters needs a flow of 20 GPM to 30 GPM.

Return switch to AUTO. Replacement switch is a screw on switch. Right click on the link of the file you wish to download.

Hayward Pool Products View FAQs. Check that pool pump is receiving enough water. Alternatively continuity is close if sufficient water flow is detected.

Reset Average Salt Level 11.

Spark Ignition Pool Heater Troubleshooting Guide Pool Heater Pool Heater

How To Troubleshoot A Hayward Aqua Rite Inyopools Com

Hayward Pool Heater Troubleshooting Intheswim Pool Blog

Hayward Aqua Rite Troubleshooting Guide Poolsupplyworld Blog

Fluke 116 Hvac Multimeter Want Additional Info Click On The Image This Is An Affiliate Link Multimeter Electrical Troubleshooting Hvac Technician

How To Troubleshoot A Hayward Aqua Rite Inyopools Com

Hayward Aqua Rite Troubleshooting Guide Poolsupplyworld Blog

Hot Tub Pressure Switch Repair Replace Troubleshooting

How To Replace A Hayward Aqua Rite Flow Switch Chlorine King Pool Service Youtube

Hayward Aqua Rite Troubleshooting Guide Poolsupplyworld Blog

Aquarite Salt Cell Hayward Aquarite Cleaning And Troubleshooting Youtube

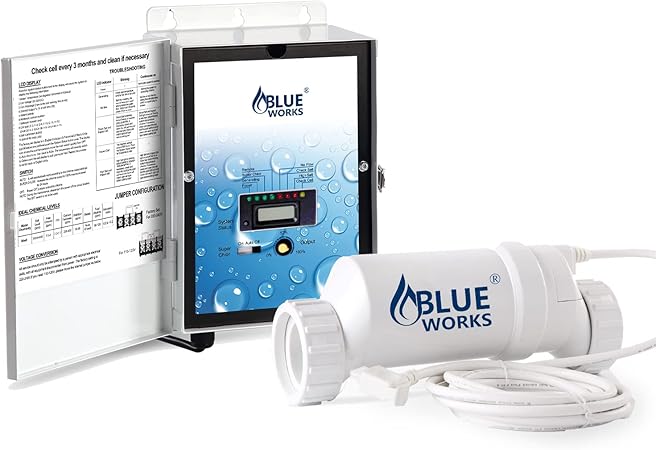

Amazon Com Blue Works Saltwater Generator Chlorinator Blh40 For 40k Gallon Pool 2 Year Full Usa Warranty Cell Plates Provided By American Company White Patio Lawn Garden
